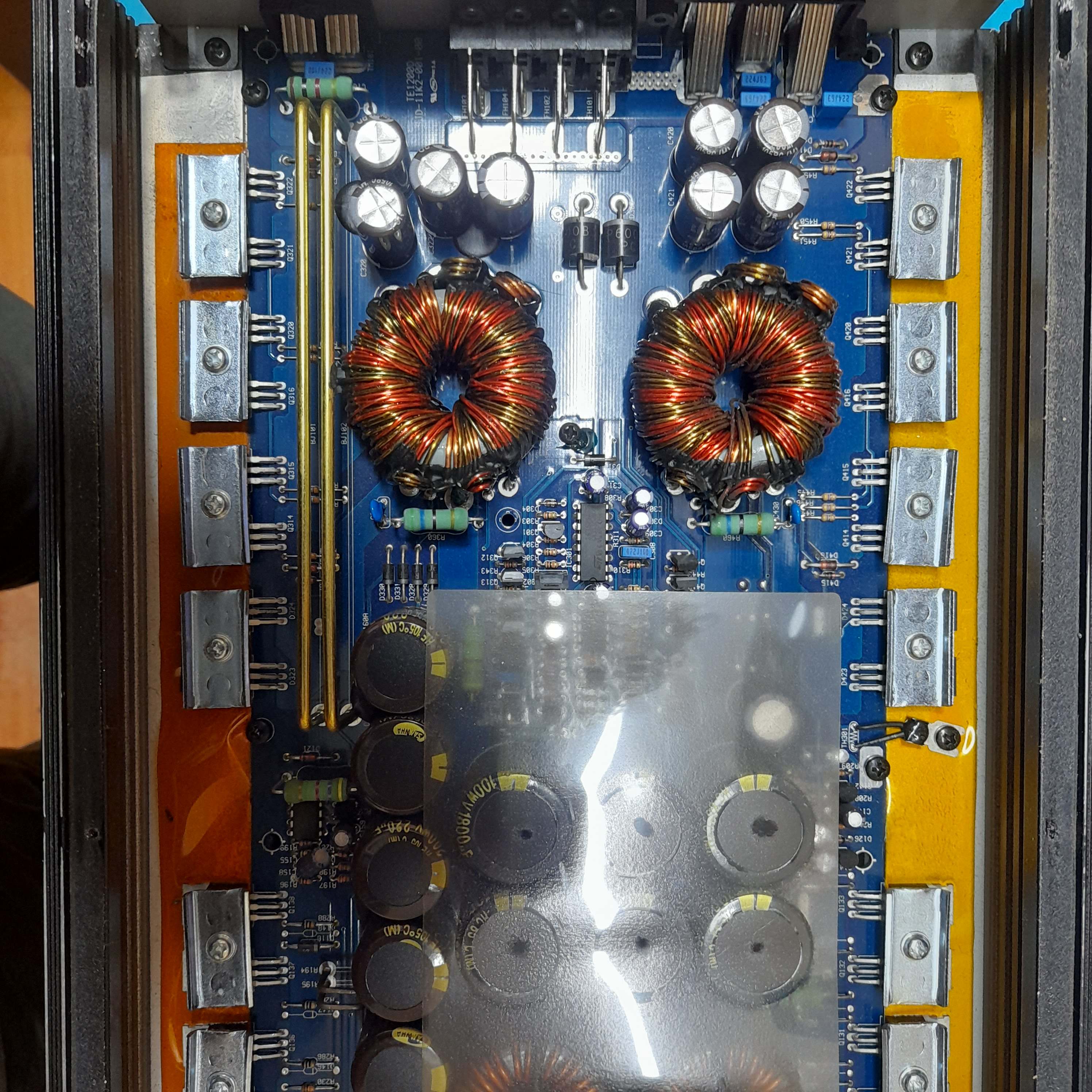

Servicio técnico TS POWER TE-4000D Encore Series 4000w Class D Monoblock Amplifier
Product Description
- Amplifier Type: Class-D
- Channel Design: 1 Channel (Mono)
- Line outputs: Non- Fading Pre-Amp Output.
- Power Supply: DC-DC PWM Power Supply.
- Power Supply Design: MOSFET Power.
- Board Circuitry: Double Sided FR-4 PC Board.
- Protection: 4 way protection.
- System Indicator: Top Mounted Blue LED Power Indicator.
- External gain control .(Optional)
- RCA Input: NI Plated RCA Input Connectors.
- Crossover: Adjustable Low-Pass, Bass boost, Phase shift, Sub sonic.
- Gain Control: Adjustable Gain Control.
- Connector Terminals: NI 2Ga Input Block type Power Terminal and 4Ga out Speaker Block type Terminals.
- Data link system: Feature allows the mono amps to be strapped or bridged via master/slave configuration.
- Power Requirements: 14.4V DC (11V to 16V)
- Input Sensitivity: 0.2V – 8.0V
- Frequency Response: 20 -150Hz (0, -3dB)
- Speaker Impedance: 4Ω, 2Ω
- Signal to Noise: 80dB < RMS
- THD(RMS) : < 0.05 %
- Damping factor : 200<
- Low pass filter: 40Hz – 150Hz, -24dB/oct
- Sub sonic filter: 20Hz – 50Hz, -24dB/oct
- EQ (Equalizer): Bass EQ : 45Hz 0dB – 18dB
- Phase shift: 0° or 180° (Switchable)
- Remote control: Variable Low Pass Gain.
Specifications
| Encore Series Amplifiers | TE-4000D |
|---|---|
| Max. Power (Watt) | 4,000 |
| RMS @ 4-Ohm | 1,200W x 1ch |
| RMS @ 2-Ohm | 1,700W x 1ch |
| Bridged @ 4-Ohm | 2,200W x 1ch |
| Dimensions (Inches) w/ End Caps | 17in x 2.3in x 8.8i |
"TS POWER TE-4000D se encuentra en falla , produce ruido al encenderlo , no tiene sonido , esta en cortocircuito ,contáctanos para poder dar solución a tu equipo , reparamos una amplia gama de amplificadores de car audio ."
atentamente ,
C4 SYSTEM SPA
